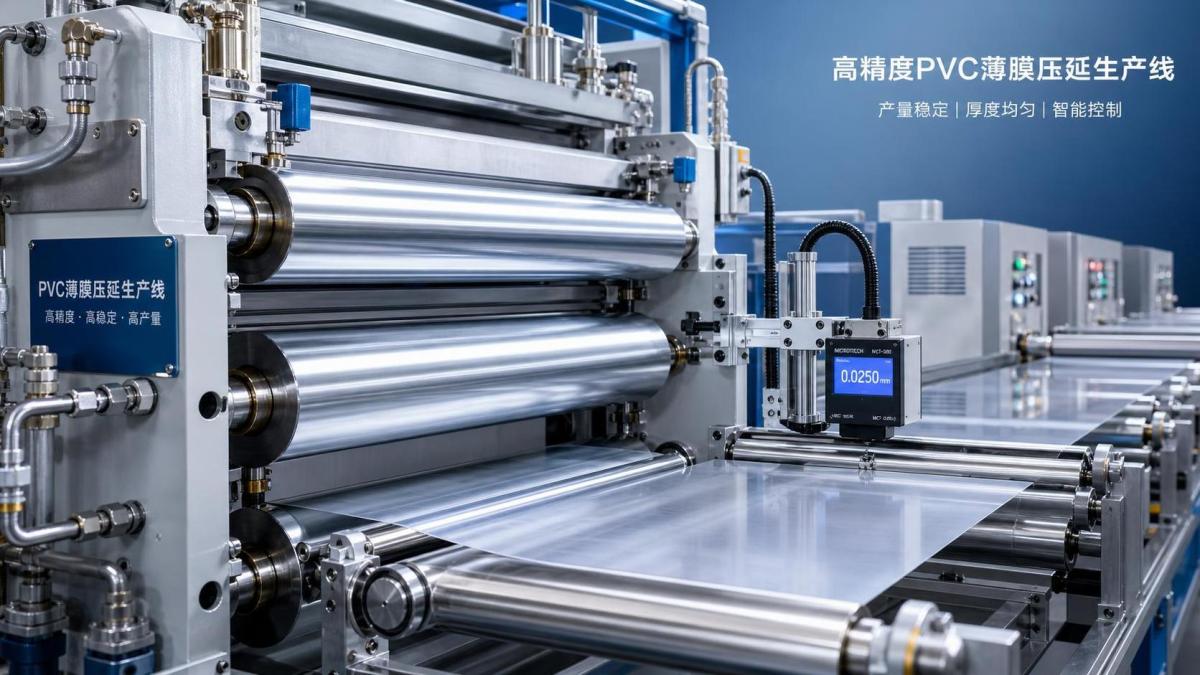

What Determines Output and Gauge Stability in a PVC Film Sheet Calender Line

Why output and gauge drift happen before anyone notices

In a PVC Film Sheet Calender Line, operators often talk about output and thickness as if they were separate problems. On the machine, they are tied together. When output becomes unstable, gauge almost never stays where it should. A line may still be running, the surface may still look acceptable from a distance, and yet the sheet is already moving away from target because heat history, roll deflection, traction, and melt condition are no longer in balance.

That is the part many people underestimate. Gauge stability is not created only at the final nip. It is the result of the whole line behaving predictably: the compound enters the calender at a repeatable temperature, the rolls hold a true gap across the width, the drives stay synchronized, and the downstream pulling system does not stretch or relax the web unevenly. For after-sales maintenance work, this matters because a complaint about thickness variation is often diagnosed too late and too locally.

Temperature balance is usually the first thing to verify

PVC is especially sensitive to thermal inconsistency. If one roll is running hotter than intended, or if the temperature profile across the roll face is uneven, the material flow changes immediately. The hotter zone softens more, draws differently, and can produce local thin spots or wandering thickness. In practice, maintenance teams should not look only at setpoint values on the control screen. The question is whether the real roll surface temperature is stable, whether heating and cooling channels are flowing properly, and whether sensors are still reading credibly.

A line can show “normal” temperature settings and still produce unstable gauge if scale buildup, poor circulation, or delayed control response has reduced thermal uniformity. This is one reason why thickness variation sometimes appears gradually during a long run rather than at startup. The machine did not suddenly fail; it drifted away from balance.

Roll gap accuracy is mechanical, not just procedural

When technicians hear “gauge issue,” they often check the gap setting first, which is reasonable. But the useful question is whether the commanded gap and the actual loaded gap are still the same thing. Wear in bearings, backlash in adjustment mechanisms, frame deformation, and roll bending under load can all make the displayed value more optimistic than reality.

There are a few warning signs worth treating seriously:

• Thickness is acceptable at the center but off at the edges.
• Gauge changes after output increases, even though settings do not.
• Repeated corrections on one side of the machine never fully settle the profile.
• The line performs differently after thermal soak than it does at cold start.

Those symptoms usually point to a mechanical or thermal loading issue, not to operator inattention. In high-demand production, even small deviations in roll parallelism can become visible in the product. That is why periodic verification of roll alignment, bearing condition, screwdown response, and nip repeatability should be treated as stability work, not as occasional repair work.

Material consistency sets the limits of what the line can hold

A PVC Film Sheet Calender Line cannot produce stable output from unstable feedstock. Variations in resin formulation, plasticizer ratio, filler dispersion, moisture condition, or preheating history all change how the material enters and passes through the rolls. Maintenance teams do not control compounding, but they do need to recognize when a line problem is really a material-window problem.

This is where good troubleshooting separates process understanding from guesswork. If the line was mechanically stable last week and now shows unstable amperage, changing bank behavior, and wider thickness fluctuation on the same setup, material variation should be on the shortlist. The right response is not to keep chasing the final gap. It is to compare batch condition, feed temperature, and line load together.

Drive synchronization affects both throughput and thickness profile

In calendering, speed ratio is process control. If roll surface speeds drift or the downstream haul-off pulls harder than intended, the sheet can thin out even when the nip setting has not changed. Conversely, insufficient downstream tension can let the web relax, creating the impression of a gauge increase. This is why stable output depends on the whole drive train, from main motors and gear transmission to encoder feedback and control logic.

For service personnel, the practical check is not only whether motors run, but whether they track consistently under load. Small synchronization errors, especially after maintenance on couplings, inverters, or feedback devices, may show up first as product instability rather than as an obvious electrical alarm.

What counts as a useful maintenance judgment

A solid maintenance judgment in this kind of line is rarely based on one reading. It comes from connecting four conditions: actual roll temperature behavior, real mechanical gap condition, material consistency, and coordinated line speed. If one of them is wrong, operators may compensate temporarily. If two drift together, output and gauge usually become visibly unstable.

That same logic appears in other industrial forming and curing equipment. In systems such as the Fabric cord conveyor belt curing press line, stable thermal distribution, controlled pressure, structural rigidity, and synchronized hydraulic or PLC functions are also the difference between nominal settings and actual product consistency. The equipment type is different, but the maintenance principle is familiar: process numbers only mean something when the machine can physically hold them under working load.

Common misunderstandings that waste service time

Three mistakes show up often in field support:

• Assuming thickness variation always comes from the last roll gap.
• Treating screen setpoints as proof of real process condition.
• Trying to recover unstable output by increasing speed before checking thermal and mechanical balance.

These are understandable mistakes because they focus on the most visible control points. But they also delay the diagnosis. In many cases, the line is not lacking adjustment range. It is lacking repeatability.

How experienced teams usually approach the problem

A disciplined check sequence tends to work better than isolated corrections. Start with thermal stability and actual roll response, then confirm gap accuracy and alignment, then review drive tracking and downstream tension, and only after that decide whether the material itself has shifted outside the normal operating window. Companies with long equipment service experience, including manufacturers that support both new and refurbished machinery, generally learn this the hard way: stability problems are expensive when teams correct symptoms in the wrong order.

JC INDUSTRY’s background in research, manufacturing, installation, commissioning, and equipment refurbishment reflects that broader reality. Whether a machine is newly built or upgraded for a second life, the standard for service is the same: the line must hold process conditions consistently, not just reach them once. That is especially relevant in after-sales work, where the real task is to restore repeatable production rather than to clear a single fault.

If a PVC calender line is producing unstable gauge, the useful question is not “which parameter is wrong?” but “which part of the machine is no longer holding the process steady?” That shift in thinking usually leads to faster diagnosis and fewer repeated callbacks.
