Fixed type shot blasting machines

Name: Fixed type shot blasting machines
SKU: 0

Discover Q37 series fixed hook type shot blasting machines for efficient steel cleaning & strengthening. Ideal for foundry, forging & mechanical industries with compact design & high productivity.

Phone：+86 17685517359

WhatsApp：+86 17685517359

Email：sale@fineyeargroup.com

◉ Product Parameters

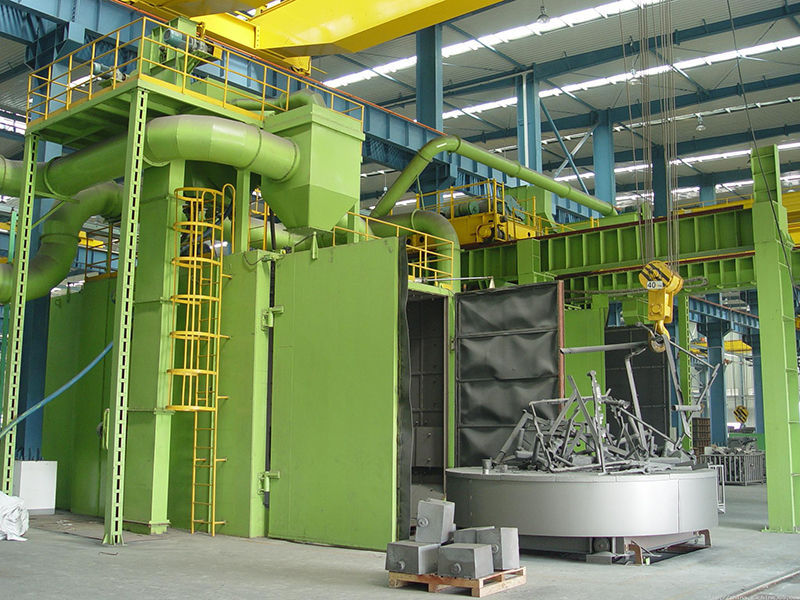

Q37 seris hook type airless shot last cleaning and stengthening of steel structural other Spare parts. It is widely used in foundry, forging, mechanical and steel industry. inparticular Q378 cleaner features no pit, double hook without rail exchanging, compact structure, and high productivity.

Technical parameters

ItemModel		Q376	Q376B	Q378C	Q3710	Q3720	Q3730	Q3750	Q37100
Maximum weight of cleaning	kg	500	500	1000	1000	2000	3000	5000	10000
Max overall dimensions of suspender	mm	Φ600×1200	Φ700×1200	Φ1000×1600	Φ1200×1800	According to design	According to design	According to design	According to design
Abrasive flow rate	kg/min	2×200	2×200	2×250	2×250	N×250	N×250	N×250	N×250
Lifting amount of elevating onveyor	T/h	24	24	30	30	According to design	According to design	According to design	According to design
Separaating amount of separator	T/h	24	24	30	30	According to design	According to design	According to design	According to design
Machine power(approximate)	kw	22.5	22.5	37	37	-	-	-	-
Ventilation capacity(approximate)	m3/h	4000	4000	5000	5000	-	-	-	-
