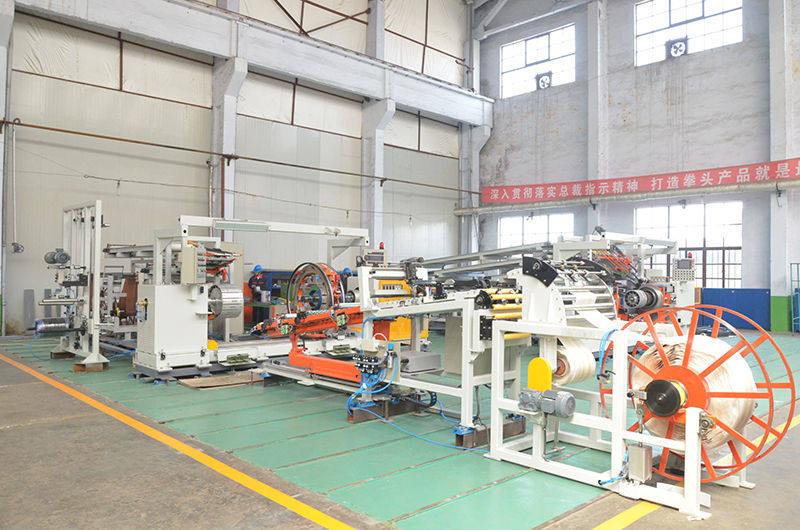

Tyre building macine

Name: Tyre building macine
SKU: 0

◉ Product Parameters

Two operators/machine

2.Auto steel cord cutting and splicing

3.Auto unloading by manipulator

4.Sidewall/Inner liner: auto application, cutting and splicing

5.Expand/collapse of carcass drum control by servo motor

6.Belt feeding plate lifting height adjustment by servo cylinder

7.Remote commissioning and trouble-shooting diagnostics

Technical parameters

Building cycle	180s(Different according to sizes and process)
Bead Dia.	19.5〃—24.5〃
Tire size	9R20—11R24.5,315/80R22.5,12.00R24,385/55R22.5,425/65R22.5,445/65R22.5
Range of tire Dia.(mm)	Φ760—φ1200
Range of belt drum Dia.(mm)	Φ670—φ1200
Range of carcass drum Dia.(mm)	Φ450—φ630
Max. Width of sidewall and inner liner(mm)	850—1600
Max. Width of sidewall supply(mm)	400
Max. Width of inner line supply(mm)	1050
Outer distance of bead(mm)	460—930
Max. Ply width(mm)	1050
Max. Chafer width(mm)	220
Range of belt width(mm)	52—450
Max. Tread width(mm)	500
Air pressure(Bar)	7—8
Total installed power(kW)	65
Overrall dimension(m)	19163.6
