What Causes Edge Curling on a PVC Flooring Calender Line

When Edge Curling Starts at the Sides, the Line Is Usually Telling You Where the Balance Is Lost

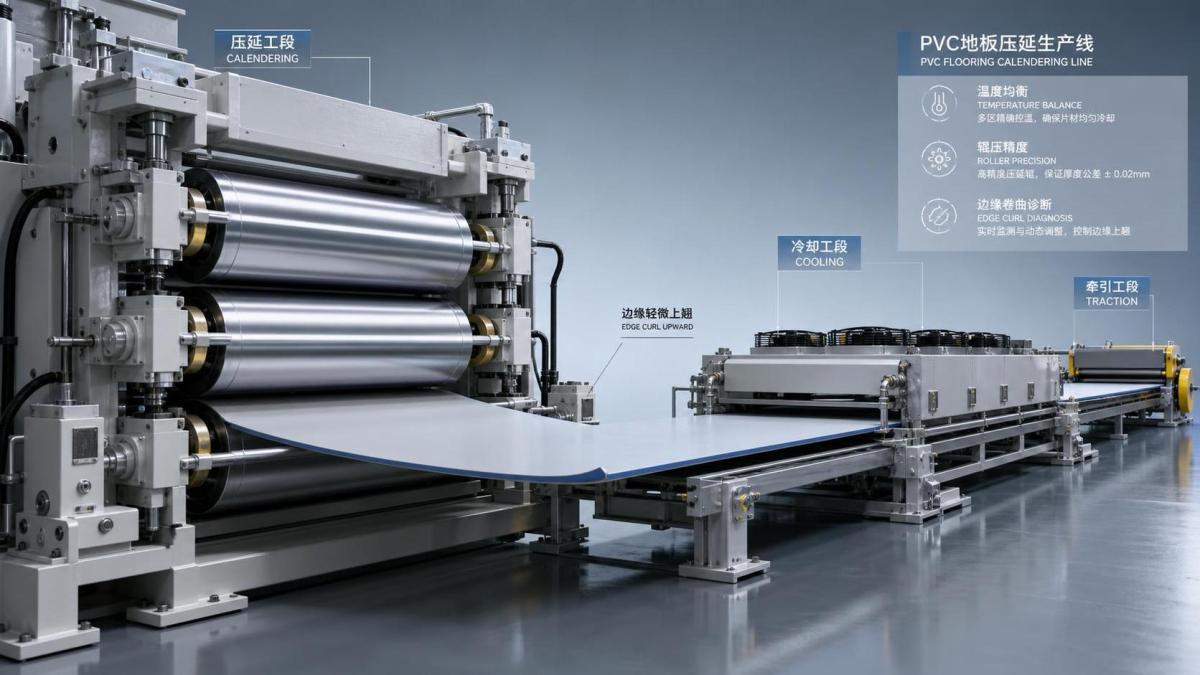

Edge curling on a PVC Flooring Calender Line rarely comes from one isolated fault. In most plants, the sheet looks acceptable through the center while both sides begin to lift, tighten, or distort as the web leaves the calender or enters the cooling section. That pattern matters. When the middle stays relatively stable and the edges move first, the problem is often tied to uneven thermal history across the sheet width, edge-to-center stress difference, or slight variation in traction after forming. For an after-sales team, the fastest way to solve it is not to adjust everything at once, but to read where the curl starts, whether it is immediate or delayed, and whether it changes with speed, gauge, or formulation lot.

The usual field mistake is to treat curling as a purely calendering issue. In practice, the calender may only be the place where stress is created. The visible defect can appear later, especially after cooling, embossing, trimming, or stacking. A line can hold thickness tolerance and still produce edges that refuse to stay flat. That is why experienced technicians watch the web over distance, not only at the nip.

Temperature Imbalance Is the First Place to Look, but Not Just Roll Surface Temperature

When operators say, “the rolls are on setpoint,” that does not close the case. Curling often comes from the difference between indicated temperature and real heat distribution in the compound. On a PVC Flooring Calender Line, the sheet edges lose heat faster than the center. If plasticization upstream is slightly insufficient, the edges can enter the nip with different viscosity, then leave with higher residual stress. Once the sheet cools, the stressed edges shrink differently and curl upward or downward depending on the stress direction.

This becomes more obvious when production shifts from one color or filler ratio to another. A formula with higher filler loading, recycled content, or changed plasticizer balance may still run, but its heat absorption and flow behavior will not match the previous setup. Operators often compensate by increasing line speed or tightening roll gap, which can hide the instability for a short time and make the edge curl worse later in the process.

A practical check is to compare curling severity after a moderate speed reduction and after a small, controlled temperature correction in the upstream mixing or roll train. If the curl changes quickly with those adjustments, you are dealing with thermal or rheological imbalance rather than a purely mechanical alignment issue.

Roll Pressure and Gap Uniformity Can Create a “Good Sheet” That Still Won’t Stay Flat

Another common site condition is acceptable average thickness with poor widthwise stress balance. This happens when the roll crown, bearing condition, gap setting, or hydraulic loading is not truly uniform across the face width. The edges may be slightly overworked or underworked even when thickness readings do not look alarming. In the plant, this is why some sheets pass gauge inspection but curl after trimming or after 24 hours of conditioning.

Edge trimming itself can expose the problem. Before trimming, the web may appear restrained by the full sheet width. Once the edge strips are removed, the remaining sheet releases stored stress and the curl becomes more visible. When that pattern appears, technicians should inspect not only the final calender nip but also whether the bank distribution is stable across the roll face. Uneven bank at the edges is a quiet warning sign. It often points to feed inconsistency, roll deflection, or local wear that the operator has learned to “run through” without addressing the cause.

Cooling Section Problems Are Frequently Misread as Material Problems

If the sheet leaves the calender looking calm and begins curling after cooling drums, conveyor transfer, or stacking, the cooling path deserves closer attention. PVC sheet needs controlled heat removal. If the edges are overcooled relative to the center, they may lock in shape earlier while the middle is still shrinking. If edge guidance is too aggressive, the web can also be stretched at the sides during cooling and then recoil afterward.

This is especially relevant on lines that have seen multiple rebuilds, where airflow patterns, fan condition, drum cleanliness, or contact angles are no longer exactly as designed. A maintenance team may focus on recipe adjustment because that is faster to try, but uneven cooling can keep reproducing the defect across different compounds. The clue is repeatability: if different formulas show similar edge behavior at the same line zone, the process hardware deserves suspicion.

Plants with broader equipment portfolios often recognize this kind of diagnosis discipline from other quality-control stations. For example, a tire factory using a used_second hand Balance testing machine does not assume every imbalance comes from the same stage of production; it checks whether the deviation was introduced in building, curing, or finishing. The same logic helps on flooring lines: the visible defect is not always born where it first becomes visible.

Formulation Changes That Look Minor on Paper Can Shift Edge Stability

Not every edge curl event starts with maintenance wear. Sometimes the line is mechanically sound, but a raw material substitution changes the processing window. PVC resin batch variation, stabilizer package adjustment, filler particle distribution, recycled content ratio, or lubricant balance can all alter how the sheet releases stress. In some projects, the complaint appears only on thinner products or on embossed structures, because those constructions are less forgiving when the melt strength and cooling response move out of range.

This is where discipline matters. If the team changes formulation, speed, and roll temperature together, the source becomes hard to isolate. A better troubleshooting sequence is to hold the recipe, verify actual thermal and mechanical consistency, then test one variable at a time. That approach reduces scrap and prevents the familiar cycle where operators temporarily flatten the sheet by overcorrecting tension.

What the Field Team Should Check Before Blaming the Calender Alone

When edge curling repeats, these comparisons usually reveal more than a long list of random adjustments:

This kind of staged observation is usually more useful than jumping straight to major disassembly. It also helps distinguish whether the line needs process correction, maintenance intervention, or a formulation review with production and compounding teams together.

Why Service Experience Still Matters on Older or Upgraded Lines

Companies that handle both new and refurbished equipment, such as JC INDUSTRY, often see the same defect behave differently on lines with the same nominal output. The reason is simple: age, rebuild history, and auxiliary modifications change how the line responds. A reused drive, an older cooling section, or a non-original control response may not stop production, but they can narrow the stable window for flatness. That is why troubleshooting on a mature line should include the actual equipment condition, not just the design specification.

The same service logic explains why some factories prefer upgraded used equipment in other inspection areas, including the used_second hand Balance testing machine used in TBR tire applications: when refurbishment is done well, the equipment can still deliver reliable performance, but only if calibration, mechanical condition, and operating window are understood in real production terms rather than brochure terms.

For a PVC flooring line with recurring edge curl, the most reliable next step is usually a narrow diagnostic run: hold one formulation, log widthwise temperature behavior, verify nip and bank consistency, then observe exactly where the curl begins and how it changes with a small speed reduction. That sequence gives the maintenance team something usable. It turns a vague flatness complaint into a process map, which is usually where the real fix starts.
